DOUBLE CAB 2.8 Rogue (AT) 4X4 | DOUBLE CAB 2.4V (AT) 4X4 | DOUBLE CAB 2.4E (AT) 4X4 | |
---|---|---|---|
Engine | |||
Model | 1GD-FTV | 2GD-FTV | 2GD-FTV |
Type | 4-cylinder, In-line, 16V, DOHC Intercooler VNT Diesel | 4-cylinder, In-line, 16V, DOHC Intercooler VNT Diesel | 4-cylinder, In-line, 16V, DOHC Intercooler VNT Diesel |
Displacement (Bore x Stroke) cc (mm) | 2,755 | 2,393 | 2,393 |
Max. Output (SAE-Net) (PS) / rpm | 204 / 3,400 | 150 / 3,400 | 150 / 3,400 |
Max. Torque (SAE-Net) Nm / rpm | 500 / 1,600 - 2,800 | 400 / 1,600 - 2,000 | 400 / 1,600 - 2,000 |
Transmission | |||
Transmission | 6-speed Automatic with Super ECT & Sequential Shifter | 6-speed Automatic with Super ECT & Sequential Shifter | 6-speed Automatic with Super ECT & Sequential Shifter |
Chassis | |||
Suspension (Front / Rear) | Independent Double Wishbone with Coil Spring & Stabiliser / Leaf Spring, Rigid Axle | Independent Double Wishbone with Coil Spring & Stabiliser / Leaf Spring, Rigid Axle | Independent Double Wishbone with Coil Spring & Stabiliser / Leaf Spring, Rigid Axle |
Brakes (Front / Rear) | Ventilated Disc with 4-Piston Fixed Caliper / Leading-Trailing Drum | Ventilated Disc with 4-Piston Fixed Caliper / Leading-Trailing Drum | Ventilated Disc with 4-Piston Fixed Caliper / Leading-Trailing Drum |
Drivetrain | Part-time 4WD with Automatic Disconnecting Differential (ADD) | Part-time 4WD with Automatic Disconnecting Differential (ADD) | Part-time 4WD with Automatic Disconnecting Differential (ADD) |
Auto Limited Slip Differential (LSD) | With | With | Without |
Rear Differential Lock | With | With | With |
Steering (Type) | Rack & Pinion with Hydraulic Power Assist | Rack & Pinion with Hydraulic Power Assist | Rack & Pinion with Hydraulic Power Assist |
Tyres & Rims | 265/60R18, Alloy (Rogue), & Highway Terrain Tyres | 265/60R18, Alloy & Highway Terrain Tyres | 265/65R17, Alloy & All-terrain Tyres |
Spare Tyre & Rim | 265/60R18, Alloy (Rogue) | 265/60R18, Alloy | 265/65R17, Steel |
Min. Turning Radius (m) | 6.4 | 6.4 | 6.4 |
Measurements | |||
Overall (mm) | Length (5,325), Width (1,900), Height(1,815) | Length (5,325), Width (1,855), Height(1,815) | Length (5,325), Width (1,855), Height(1,815) |
Wheelbase (mm) | 3,085 | 3,085 | 3,085 |
Weight (Kerb / Gross) (kg) | 2,120 / 2,910 | 2,120 / 2,910 | 2,080 / 2,910 |
Thread (Front / Rear) | 1,500 / 1,510 | 1,540/1,550 | 1,540/1,550 |
Deck (mm) | Length (1,525), Width (1,540), Height(480) | Length (1,525), Width (1,540), Height(480) | Length (1,525), Width (1,540), Height(480) |
Min. Ground Clearance (mm) | 286 | 286 | 286 |
Fuel Capacity (Litre) | 80 | 80 | 80 |
Exterior | |||
Headlamps (Type) | Automatic Bi-LED Projector (with Follow Me Home Function | Automatic Bi-LED Projector (with Follow Me Home Function | Automatic Halogen Multi-reflector (with Follow Me Home Function) |
Daytime Running Lights | With (LED) | With (LED) | With (Bulb) |
Fog Lamps | With Front (LED) & Rear Fog Lamps (LED) | With Front (LED) & Rear Fog Lamps (LED) | With Rear Fog Lamps |
Radiator Grille | Dark Grey & Black Paint | Chrome | Dark Grey Paint |
Bumper (Front / Rear) | Dark Grey & Black Paint / Grey | Body Colour / Chrome | Body Colour / Grey |
Overfender | With | Without | Without |
Wing Mirror | Dark Grey, Power Adjustable & Retractable with Turn Signal Lamp | Chrome, Power Adjustable & Retractable with Turn Signal Lamp | Black, Power Adjustable with Turn Signal Lamp |
Interior | |||
Meter Panel (Type) | Optitron with Illumination Control | Optitron with Illumination Control | Backlight |
Meter Panel - Multi-Information Display (MID) | With (4.2" Colour TFT) | With (4.2" Colour TFT) | Without |
Audio System (Type) | Display Audio with Apple CarPlayTM & Android AutoTM Ready Connectivity*, USB & Bluetooth® | Display Audio with Apple CarPlayTM & Android AutoTM Ready Connectivity*, USB & Bluetooth® | CD Player with Tuner, MP3, AUX-Jack, USB & Bluetooth® |
Audio System (Speaker) | 6 | 6 | 6 |
Air-conditioning | Automatic with Rear Vents | Automatic with Rear Vents | Manual |
USB Charging Ports | With | With | With |
Front Digital Video Recorder (DVR) | With | With | Optional |
Steering Wheel (Type) | 4-spoke Leather Wrapped | 4-spoke Leather Wrapped | 4-spoke Urethane |
Steering Wheel (Adjustment) | Tilt & Telescopic | Tilt & Telescopic | Tilt & Telescopic |
Steering Wheel (Switches) | Audio, MID, Bluetooth® Hands-free, Adaptive Cruise Control & Lane Departure Alert | Audio, MID, Bluetooth® Hands-free | Audio & Bluetooth ® Hands-free |
Keyless Entry System | With (Smart Entry) | With (Smart Entry) | With |
Power Windows | With (Auto Up/ Down with Jam Protection for All Windows) | With (Auto Up/ Down with Jam Protection for All Windows) | With (Auto Down for Driver only) |
Power Door Lock | With | With | With |
Drive Mode | With (Normal, ECO & Power Mode) | With (Normal, ECO & Power Mode) | With (Normal, ECO & Power Mode) |
4WD Transfer Dial | With (Electronic) | With (Electronic) | With (Electronic) |
Seats (Material) | Perforated Combination Leather (Black & Grey) | Combination Leather (Black) | Fabric (Black) |
Seats - Front Seat (Driver Seat) | 8-way Power Adjustable | 8-way Power Adjustable | 4-way Manual Adjustable |
Seats - Front Seat (Front Passenger) | 4-way Manual Adjustable | 4-way Manual Adjustable | 4-way Manual Adjustable |
Seats - Rear Seat (Type) | Bench Type with 60:40 Tip Up | Bench Type with 60:40 Tip Up | Bench Type with Tip-up |
Illuminated Entry System | With (Push Start, Room, Footwell & Door Trim) | With (Push Start, Room & Footwell) | With (Ignition & Room) |
Safety | |||
Pre-collision System (PCS) | With | Without | Without |
Lane Departure Alert (LDA) | With | Without | Without |
Dynamic Radar Cruise Control (DRCC) | With | Without | Without |
Blind Spot Monitor with Rear Cross Traffic Alert (RCTA) | With | With | Optional |
Downhill-Assist Control (DAC) | With | Without | Without |
Active Traction Control (A-TRC) | With | With | With |
Vehicle Stability Control (VSC) | With Hill-start Assist Control (HAC), Emergency Stop Signal (ESS) & Trailer Sway Control (TSC) | With Hill-start Assist Control (HAC), Emergency Stop Signal (ESS) & Trailer Sway Control (TSC) | With Hill-start Assist Control (HAC), Emergency Stop Signal (ESS) & Trailer Sway Control (TSC) |
Anti-lock Braking System (ABS) | With Electronic Brake-force Distribution (EBD) & Brake Assist (BA) | With Electronic Brake-force Distribution (EBD) & Brake Assist (BA) | With Electronic Brake-force Distribution (EBD) & Brake Assist (BA) |
Reverse Sensor | With | With | With |
Reverse Camera | With | With | Optional |
Panoramic View Monitor (PVM) | Optional | Optional | Optional |
SRS Airbags | 7 (Driver, Front Passenger, Side, Curtain & Driver Knee) | 7 (Driver, Front Passenger, Side, Curtain & Driver Knee) | 3 (Driver, Front Passenger & Driver Knee) |
Seatbelts (Front) | 3-point ELR x 2 with Pretensioner & Force Limiter | 3-point ELR x 2 with Pretensioner & Force Limiter | 3-point ELR x 2 with Pretensioner & Force Limiter |
Seatbelts (Rear) | 3-point ELR x 3 | 3-point ELR x 3 | 3-point ELR x 3 |
ISOFIX | With (Outboard Rear Seats) | With (Outboard Rear Seats) | With (Outboard Rear Seats) |
Security | |||
Alarm | Immobiliser, Siren with Backup Battery, Cabin Sensor, Double Locking & Speed Auto Door Lock | Immobiliser, Siren with Backup Battery, Cabin Sensor, Double Locking & Speed Auto Door Lock | Immobiliser, Siren with Backup Battery, Cabin Sensor, Double Locking & Speed Auto Door Lock |
Vehicle Telematics System | With | With | Optional |

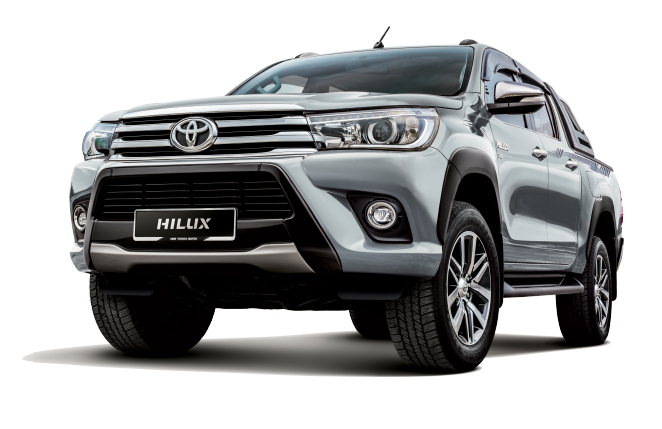

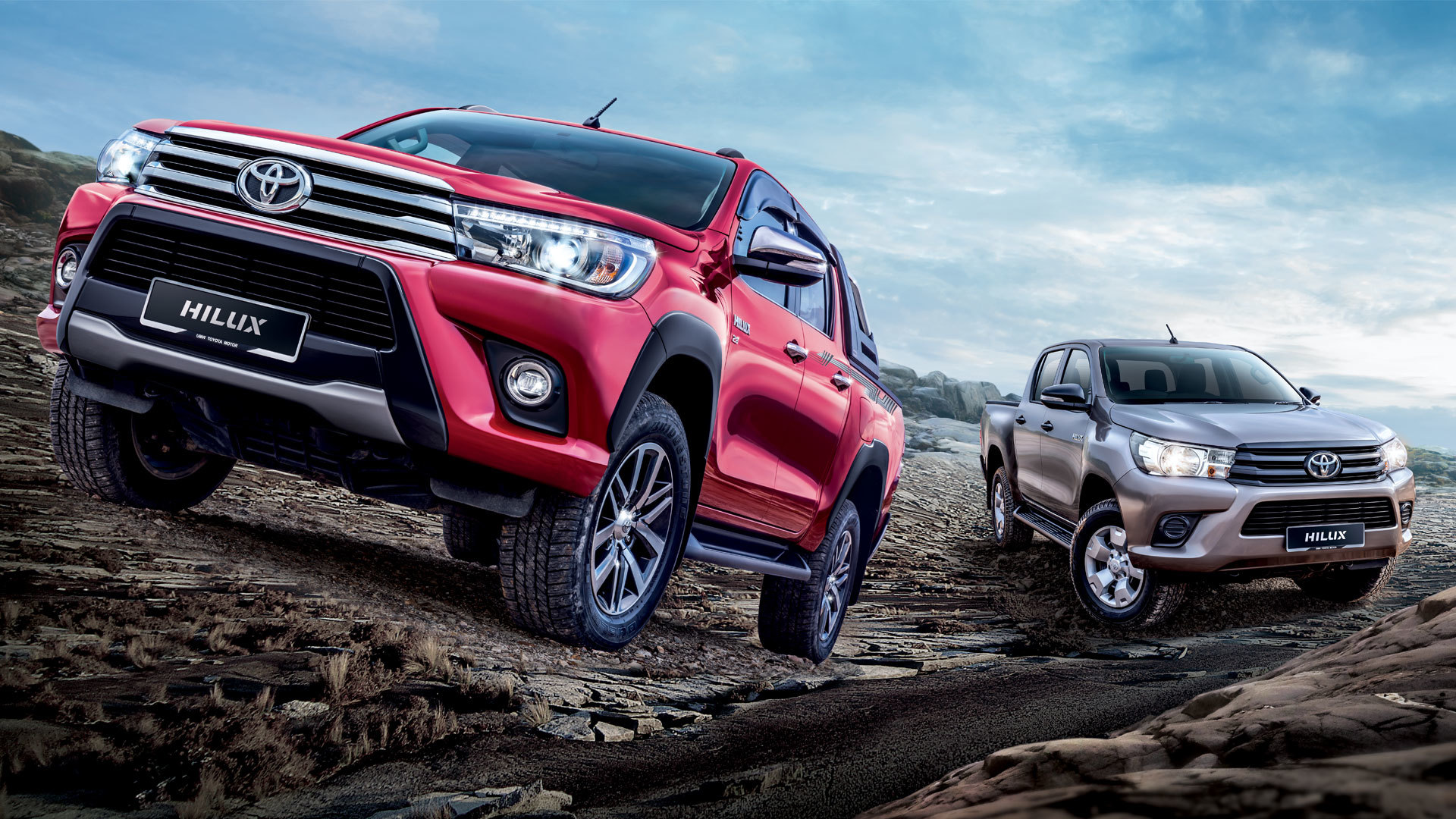

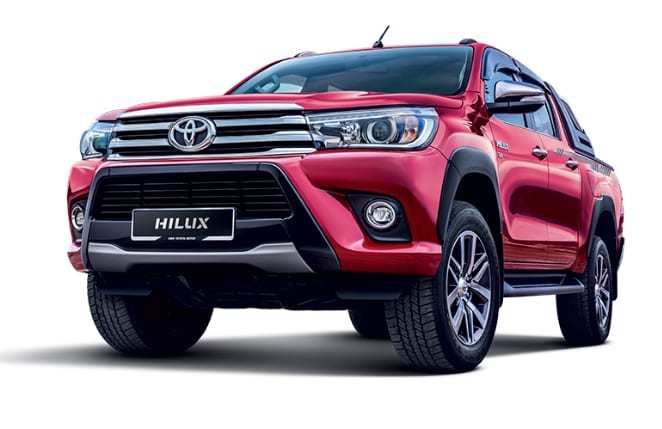

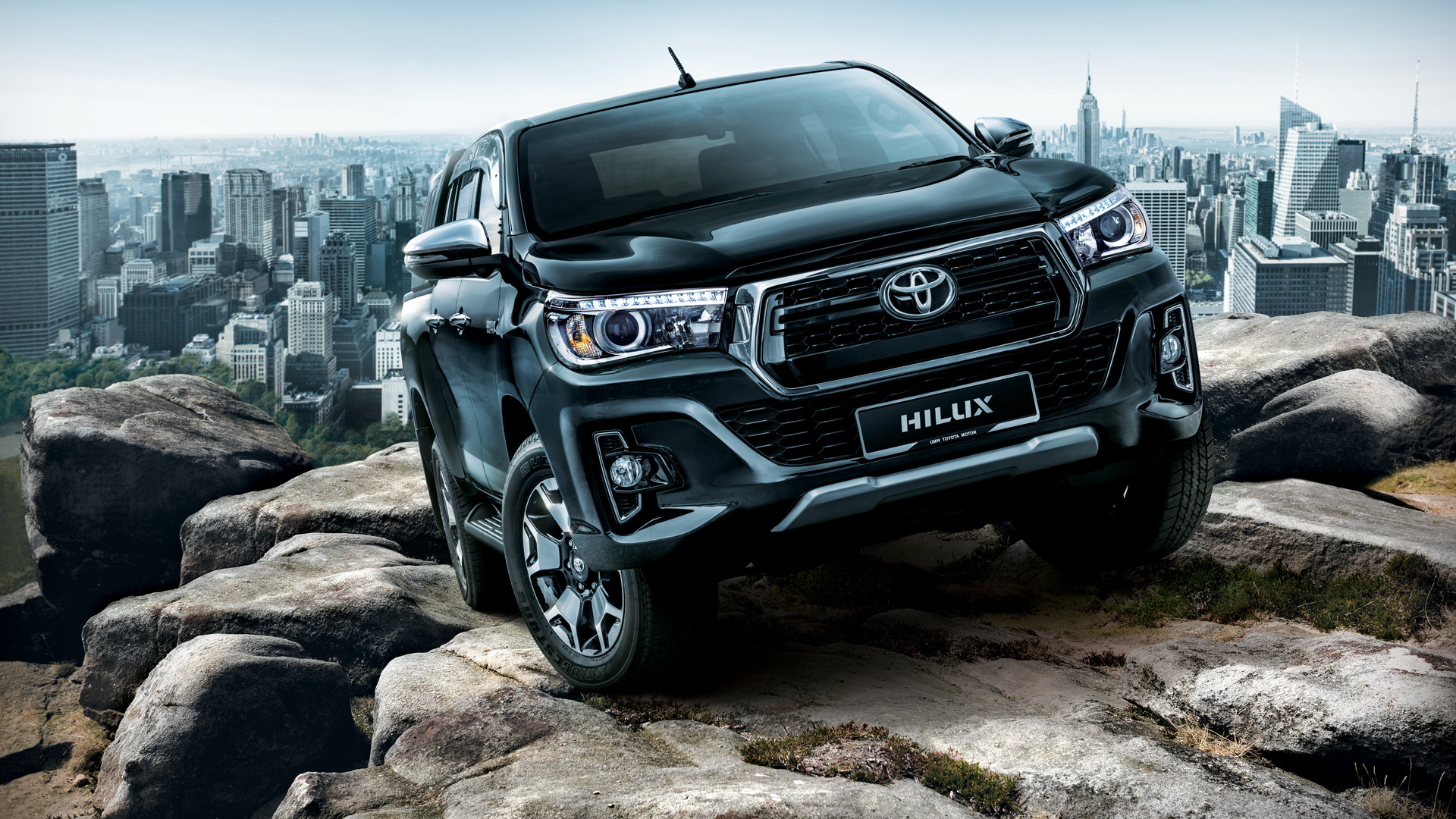

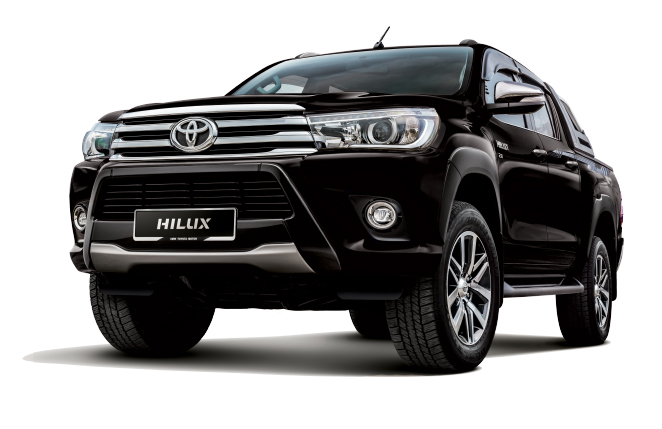

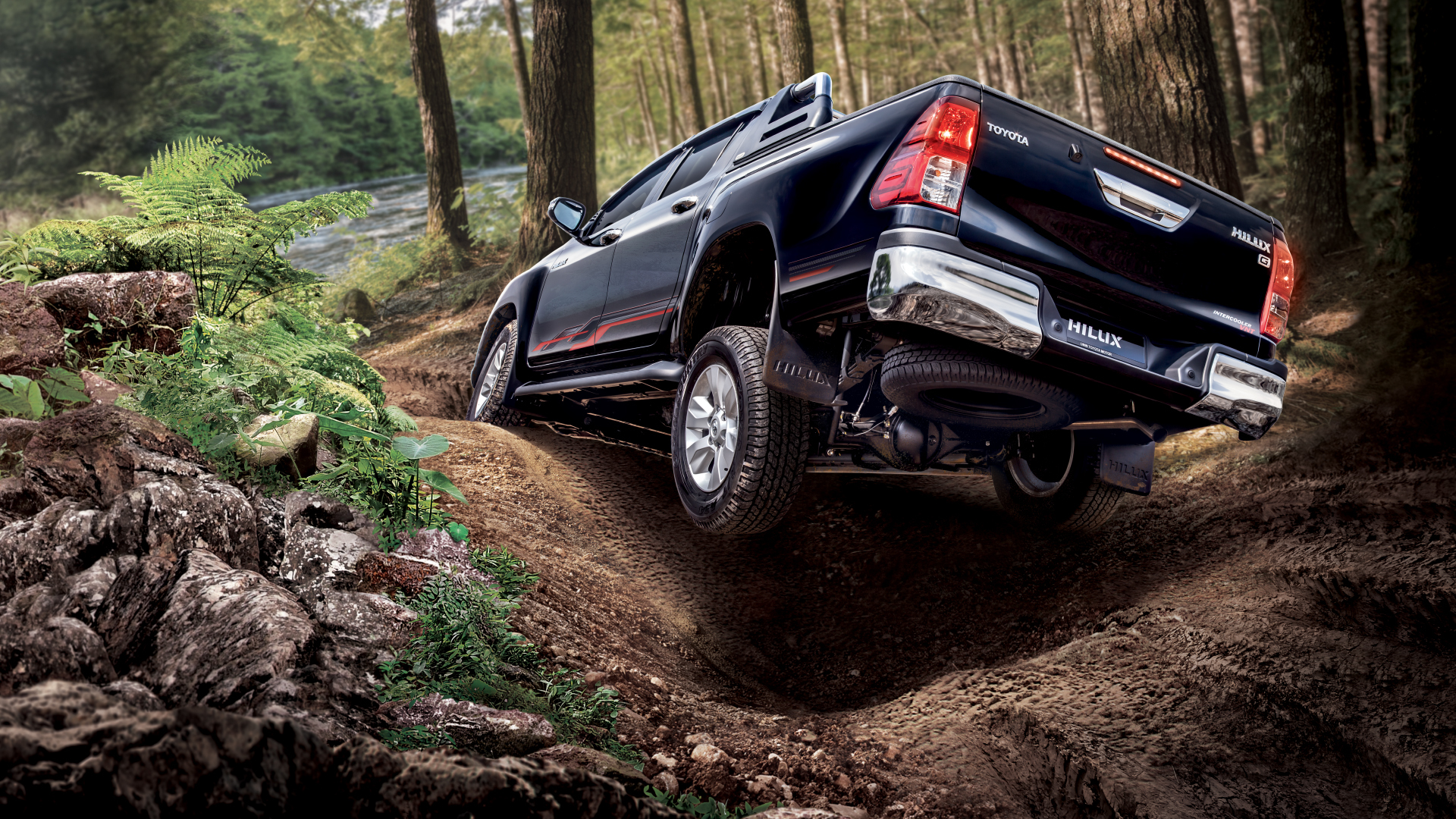

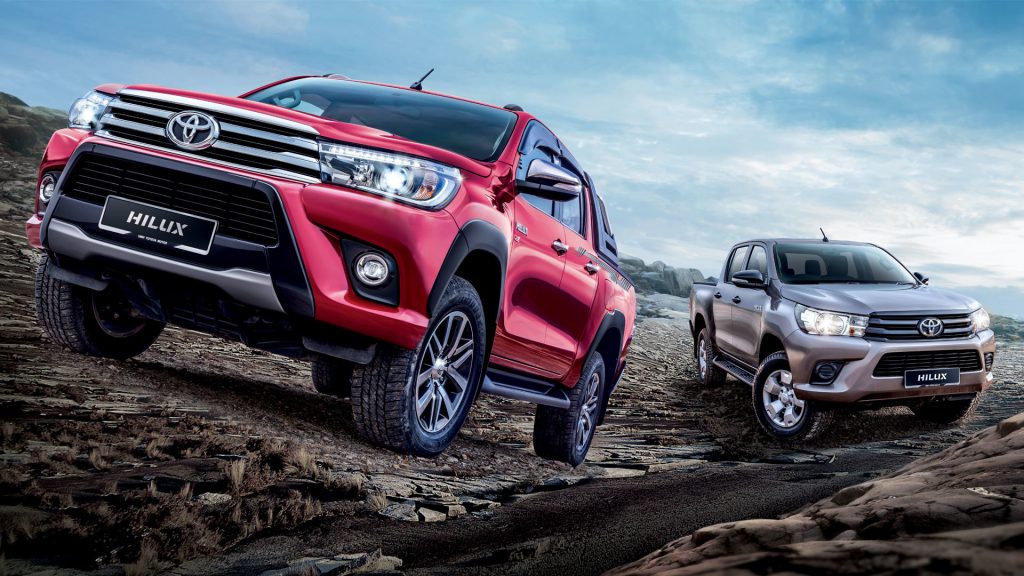

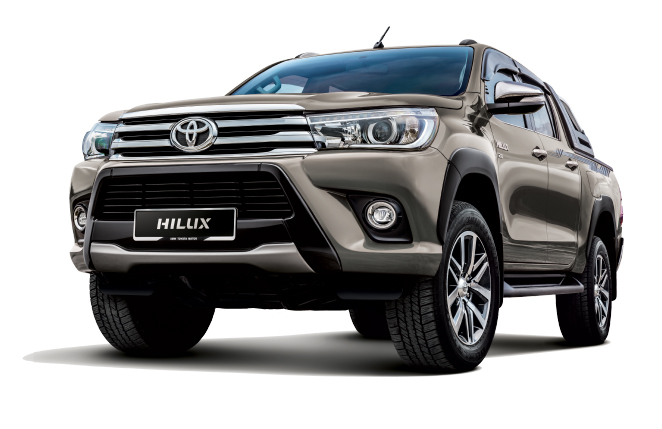

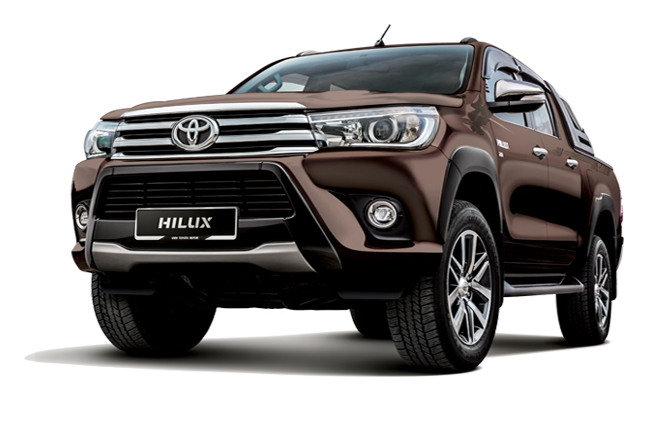

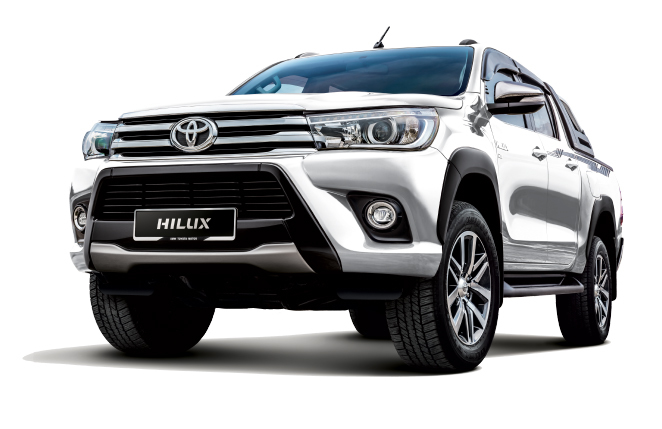

HILUX
EXTERIOR
- Bi-LED Headlamps
Lends the Hilux a little sophistication while maintaining the tough impression that the Hilux is well-known for.
- LED Rear Combination Lamps
Have a characteristic design that others will admire
- LED Fog Lamps
Positioned at the lower bumper corners to emphasise the wide and low appearance.
- New Front Grille And Bumper Design
The three-dimensional grille folds into the engine hood and bumper guard, creating a strong powerful look.
- Bedliner Light*
Provides convenience to find items in the cargo bed at night or in dark places.
*Optional accessory
- Welcome Light*
Helps to locate sidestep at night or in dark places so you can easily enter the Hilux.
*Optional accessory
- 18`` Alloy Rims
Stylish 18″ Alloy Rims with Highway Terrain Tyres provide excellent road holding and highway cruising comfort.
INTERIOR
- Front Digital Video Recorder (DVR)
Records your journeys for your protection should evidence be necessary.
- Smart Entry and Push Start System
Open the doors and start the engine without taking the keys out of your pocket.
- Auto Air-conditioning With Rear Vents
Automatically maintains a balanced environment throughout the cabin, while rear ducts provide additional comfort for rear passengers.
- Improved Suspension System
Allows for a comforting ride that prevents fatigue even on long journeys.
- New Meter Design & MID With Additional Information
Matches the blue illumination to add a premium feel. Comes with an opening animation.
- Illuminated Door Trim
The blue light elevates the atmosphere within the cabin.
PERFORMANCE
- 2.8 / 2.4L Diesel Engine
GREATER POWER WITH ENHANCED EFFICIENCY
The newly developed heavy-duty turbocharger results in superior performance while the increased common-rail fuel injection pressure contributes to increased fuel efficiency. A 6-speed transmission delivers this power with a smooth driving feel.
Improved 2.8 Litre Engine
1GD-FTV
2.8 L Intercooler VNT
Max Power: 204 PS / 3,400 rpm
Max Torque: 500 Nm / 1,600 – 2,800 rpm
Electronic Common-rail Fuel Injection System2.4 Litre Engine
2GD-FTV
2.4 L Intercooler VNT
Max Power: 150 PS / 3,400 rpm
Max Torque: 400 Nm / 1,600 – 2,000 rpm
Electronic Common-Rail Fuel Injection System - Variable Flow Control (VFC) Power Steering
Provides more natural handling that varies the assistance level to match high and low speeds.
- Auto Limited- Slip Differential (LSD)
While activated, it maximises the traction without limiting engine power when one of the rear wheels has slipped.
- Rear Differential Lock
Improves traction in rough road conditions by providing equal torque to both rear wheels.
- Downhill-Assist Control (DAC)
Controls the brakes automatically and prevents the Hilux from slipping when descending steep slopes.
- Active Traction Control (A-TRC)
When a wheel loses traction in 4WD mode, the system brakes that wheel and transfers power to the other wheel on the axle to maintain forward momentum.
- ECO / Power Drive Mode Selector
ECO mode enhances the Hilux’s fuel economy. Power mode maximises performance.
SAFE-T
- Pre-Collision System (PCS)*
Avoids or mitigates frontal collisions by alerting the driver and automatically applying the brakes when there is a risk of collision.
- Lane Departure Alert (LDA) With Yaw Assist
Alerts when you are out of the lane unintentionally and applies additional brake force to the inner wheels to correct your Hilux’s direction. Less swaying, safer driving.
- Dynamic Radar Cruise Control (DRCC)*
At speeds above 30 km/h, it maintains a safe distance with the preceding vehicle and brakes automatically when the car ahead slows down.
- Panoramic View Monitor (PVM)*
The 360° PVM allows you to be aware of hazards surrounding your Hilux. Useful when parking, especially in narrow and tight spaces.
*Optional accessory. Available for Double Cab variants only.
- Security System
Comprises a full range of security features such as an immobiliser, siren with back-up battery, an intrusion sensor, double locking and speed auto door lock.
- Blind Spot Monitor (BSM) with Rear Cross Traffic Alert (RCTA)
Detects vehicles that may not be visible to you when changing lanes or reversing, and alerts you.
- Hill-Start Assist Control (HAC)
Prevents the Hilux from rolling back when moving off up a steep slope, ensuring greater driving safety.
- Seat Belt Reminder
Reminds all passengers to wear their seat belts.
- Trailer Sway Control (TSC)
When crosswinds, irregular road surfaces or sudden steering affects a towed trailer, the movement of the trailer is lessened so that it doesn’t go out of control.
- 7 SRS Airbags
Driver, front passenger, side, curtain shield and driver’s knee airbags provide complete protection for the driver and passengers in the event of a collision.
- Emergency Stop Signal (ESS) And Brake Assist (BA)
Sudden braking will cause the emergency signals of the Hilux to flash, to warn vehicles behind it, while BA ensures that maximum braking force is applied when an emergency is detected.
- Vehicle Stability Control (VSC) With Traction Control (TRC)
VSC prevents the Hilux from spinning when sudden manoeuvres are needed, while TRC improves traction when moving off/accelerating on slippery surfaces.
- Pre-Collision System (PCS)*
Avoids or mitigates frontal collisions by alerting the driver and automatically applying the brakes when there is a risk of collision.
CONNECTIVI-T
- Apple Carplay & Android Auto-ready Connectivity*
Access navigation and music options easily using your phone.
*Android Auto™ will be available when the service is officially launched in Malaysia.
- Vehicle Telematics System (VTS)
An integrated system that monitors and shares your Hilux’s real-time location through a mobile app.
GUARAN-T
- 5 Years Warranty
5 years warranty from the date of first registration or 150,000 km travelled, whichever occurs first.
*Terms and conditions apply.
Optional Accessories
- Sport Bar
Adds even more rugged appeal to the already tough appearance of the Hilux.
- Rear Digital Video Recorder (DVR)
Automatically turns on and starts recording on driving mode when the car engine is started. Has a wide view angle and records in full HD.
DOUBLE CAB 2.4G (MT) 4X4 | SINGLE CAB 2.4 (MT) 4X4 | |
---|---|---|
Engine | DOUBLE CAB 2.4G (AT) 4X4 | DOUBLE CAB 2.4G (MT) 4X4 |
Model | 2GD-FTV | 2GD-FTV |
Type | 4-cylinder, In-line, 16V, DOHC Intercooler VNT Diesel | 4-cylinder, In-line, 16V, DOHC Intercooler VNT Diesel |
Displacement (Bore x Stroke) cc (mm) | 2,393 | 2,393 |
Max. Output (SAE-Net) PS / rpm | 150 / 3,400 | 150 / 3,400 |
Max. Torque (SAE-Net) Nm / rpm | 400 / 1,600 - 2,000 | 400 / 1,600 - 2,000 |
Transmission | ||
Transmission | 6-speed Manual | 6-speed Manual |
Chassis | ||
Suspension (Front / Rear) | Independent Double Wishbone with Coil Spring & Stabiliser / Leaf Spring, Rigid Axle | Independent Double Wishbone with Coil Spring & Stabiliser / Leaf Spring, Rigid Axle |
Brakes (Front / Rear) | Ventilated Disc with 4-Piston Fixed Caliper / Leading-Trailing Drum | Ventilated Disc with 4-Piston Fixed Caliper / Leading-Trailing Drum |
Drivetrain | Part-time 4WD with Automatic Disconnecting Differential (ADD) | Part-time 4WD with Automatic Disconnecting Differential (ADD) |
Auto Limited Slip Differential (LSD) | Without | Without |
Rear Differential Lock | With | With |
Steering (Type) | Rack & Pinion with Hydraulic Power Assist | Rack & Pinion with Hydraulic Power Assist |
Tyres & Rims | 265/65R17, Alloy & All-terrain Tyres | 225/70R17C, Steel & All-terrain Tyres |
Spare Tyre & Rim | 265/65R17, Steel | 225/70R17C, Steel |
Min. Turning Radius (m) | 6.4 | 6.4 |
Measurements | ||
Overall (mm) | Length (5,325), Width (1,855), Height(1,815) | Length (5,325), Width (1,815), Height(1,795) |
Wheelbase (mm) | 3085 | 3085 |
Weight (Kerb / Gross) (kg) | 2,065 / 2,910 | 1,975 / 2,870 |
Thread (Front / Rear) | 1,540 / 1,550 | 1,540 / 1,550 |
Deck (mm) | Length (1,525), Width (1,540), Height(480) | Length (2,315), Width (1,575), Height(480) |
Min. Ground Clearance (mm) | 286 | 286 |
Fuel Capacity (Litre) | 80 | 80 |
Exterior | ||
Headlamps (Type) | Automatic Halogen Multi-reflector (with Follow Me Home Function) | Automatic Halogen Multi-reflector (with Follow Me Home Function) |
Daytime Running Lights | With (Bulb) | With (Bulb) |
Fog Lamps | With Front (LED) & Rear Fog Lamps | With Rear Fog Lamps |
Radiator Grille | Chrome | Black |
Bumper (Front / Rear) | Body Colour / Chrome | Black / Grey |
Overfender | Without | Without |
Wing Mirror | Chrome, Power Adjustable & Retractable with Turn Signal Lamp | Black, Power Adjustable |
Interior | ||
Meter Panel (Type) | Optitron with Illumination Control | Backlight |
Meter Panel - Multi-Information Display (MID) | With (4.2" Colour TFT) | Without |
Audio System (Type) | Display Audio with Apple CarPlayTM & Android AutoTM Ready Connectivity*, USB & Bluetooth® | CD Player with Tuner, MP3, AUX-Jack, USB & Bluetooth® |
Audio System (Speaker) | 6 | 2 |
Air-conditioning | Manual | Manual |
USB Charging Ports | With | Without |
Front Digital Video Recorder (DVR) | Optional | Without |
Steering Wheel (Type) | 4-spoke Leather Wrapped | 4-spoke Urethane |
Steering Wheel (Adjustment) | Tilt & Telescopic | Tilt Only |
Steering Wheel (Switches) | Audio, MID, Bluetooth® Hands-free | Without |
Keyless Entry System | With (Smart Entry) | With |
Power Windows | With (Auto Up/ Down with Jam Protection for All Windows) | With (Auto Down for Driver only) |
Power Door Lock | With | With |
Drive Mode | With (Normal, ECO & Power Mode) | Without |
4WD Transfer Dial | With (Electronic) | With (Electronic) |
Seats (Material) | Fabric (Black) | Fabric (Black) |
Seats - Front Seat (Driver Seat) | 6-way Manual Adjustable | 4-way Manual Adjustable |
Seats - Front Seat (Front Passenger) | 4-way Manual Adjustable | 2-way Manual Adjustable |
Seats - Rear Seat (Type) | Bench Type with 60:40 Tip Up | Without |
Safety | ||
Pre-collision System (PCS) | Without | Without |
Lane Departure Alert (LDA) | Without | Without |
Dynamic Radar Cruise Control (DRCC) | Without | Without |
Blind Spot Monitor with Rear Cross Traffic Alert (RCTA) | Optional | Without |
Downhill-Assist Control (DAC) | Without | Without |
Active Traction Control (A-TRC) | With | Without |
Vehicle Stability Control (VSC) | With Hill-start Assist Control (HAC), Emergency Stop Signal (ESS) & Trailer Sway Control (TSC) | Without |
Anti-lock Braking System (ABS) | With Electronic Brake-force Distribution (EBD) & Brake Assist (BA) | With Electronic Brake-force Distribution (EBD) |
Reverse Sensor | With | Without |
Reverse Camera | With | Without |
Panoramic View Monitor (PVM) | Optional | Without |
SRS Airbags | 3 (Driver, Front Passenger & Driver Knee) | 3 (Driver, Front Passenger & Driver Knee) |
Seatbelts (Front) | 3-point ELR x 2 with Pretensioner & Force Limiter | 3-point ELR x 2 with Pretensioner & Force Limiter |
Seatbelts (Rear) | 3-point ELR x 3 | Without |
ISOFIX | With (Outboard Rear Seats) | Without |
Security | ||
Alarm | 2 Remote Control Keys, Immobiliser, Siren with Backup Battery, Cabin Sensor, Double Locking & Speed Auto Door Lock | 2 Remote Control Keys, Immobiliser, Siren with Backup Battery, Cabin Sensor, Double Locking & Speed Auto Door Lock |
Vehicle Telematics System | Optional | Optional |
